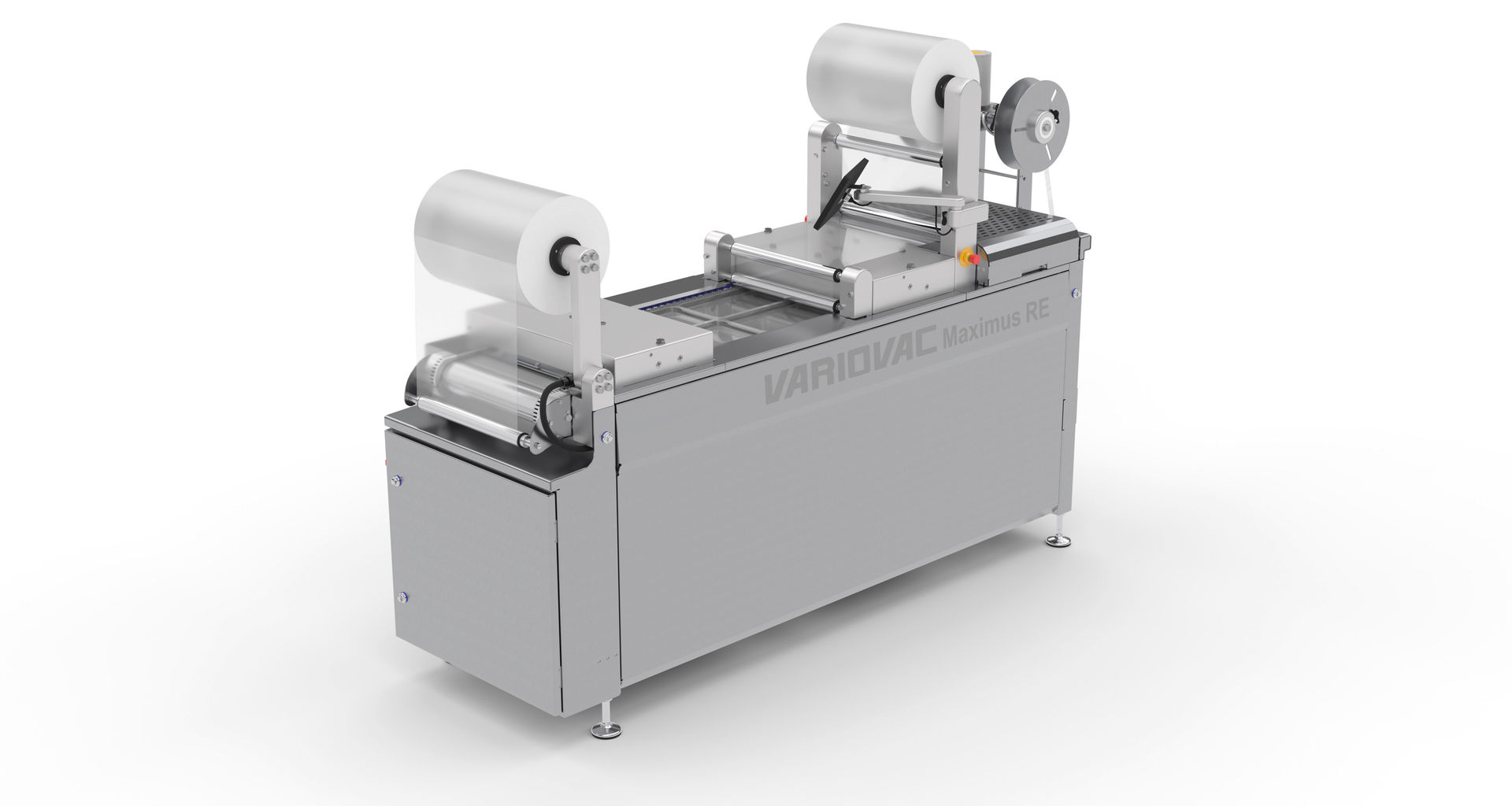

Maximus RE
Efficient. Compact. Versatile.
The Maximus RE is the ideal solution for smaller productions. Its integrated control cabinet makes it particularly space-saving. The intuitive 10-inch HMI panel ensures precise process monitoring, while the standard film width of 420 mm and six different stroke lengths enable versatile applications for packaging your food or non-food products.
| Film width: | 420 mm |
|---|---|
| Available stroke lengths: | 200 | 230 | 260 | 280 | 300 | 320 mm |
| Maximum draw depth: | 90 mm |
| Format: | 2.1 (always included) |
| Packaging types: | Sealing, Vacuum, MAP (flexible film) |
| Packaging output: | max. 6 cycles/min. |
| Compressed air: | min. 6 bar |
| Vacuum pump: | 063 cbm/h (internal) |
| Electrical voltage: | 3 x 230 V N/PE | 3 x 400 V N/PE | 50/60 Hz | IP65 |
