Do you want to package your products attractively and securely? Food, non-food or medical sterile goods? Under vacuum, with protective gas, in high quality as skin packaging or in shrink film, perhaps even fill it when it is still hot with Variosteam?

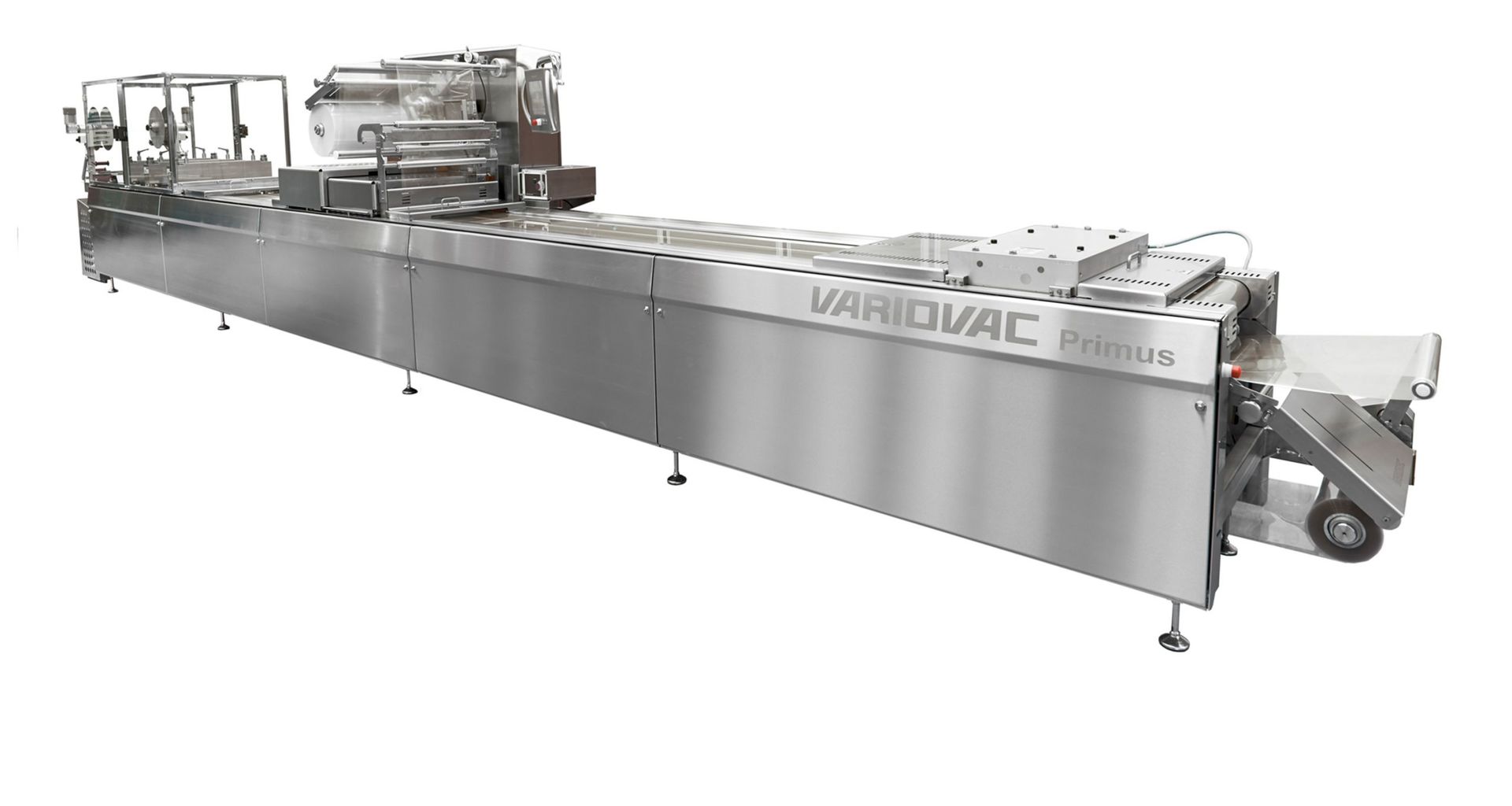

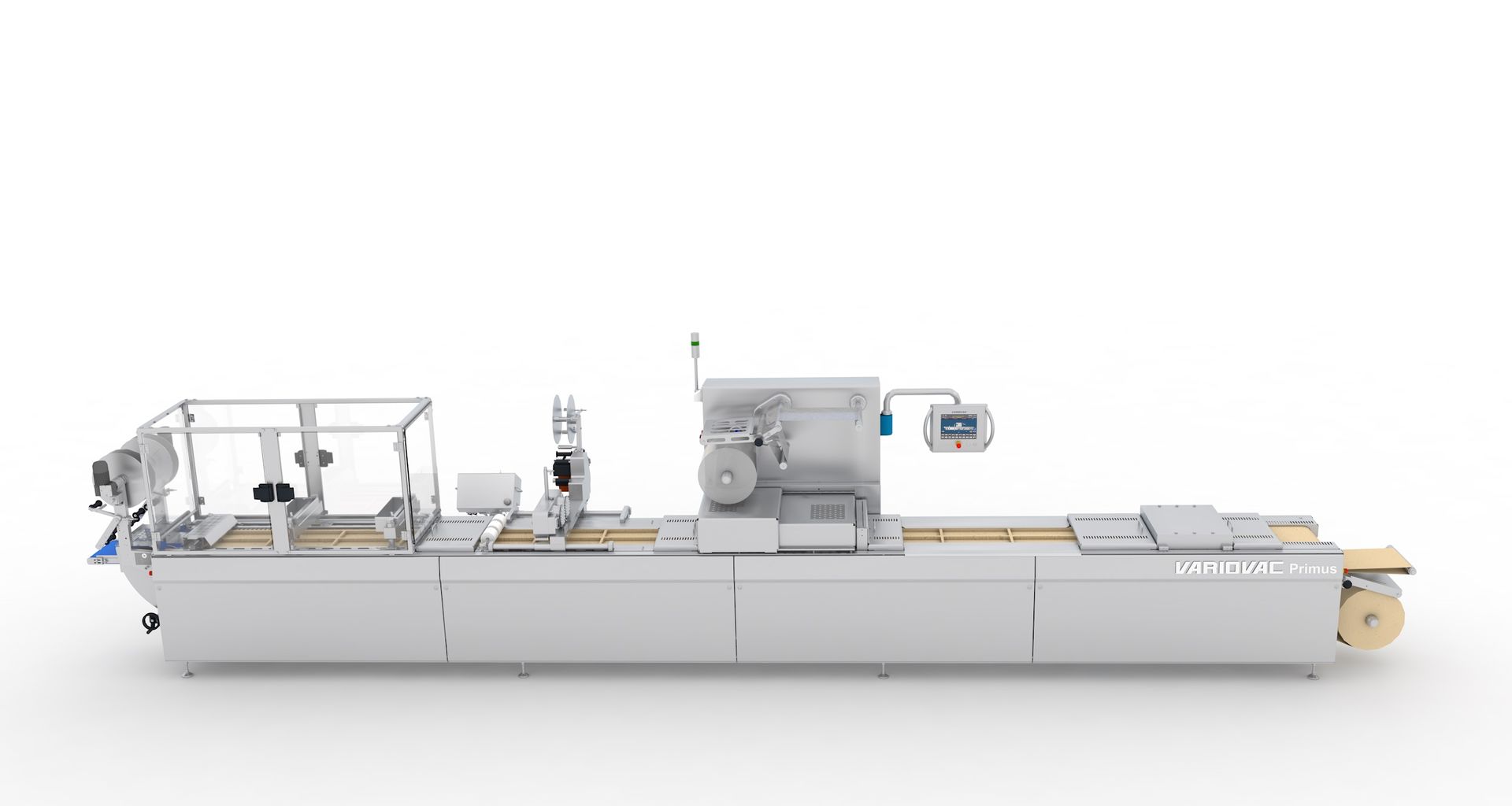

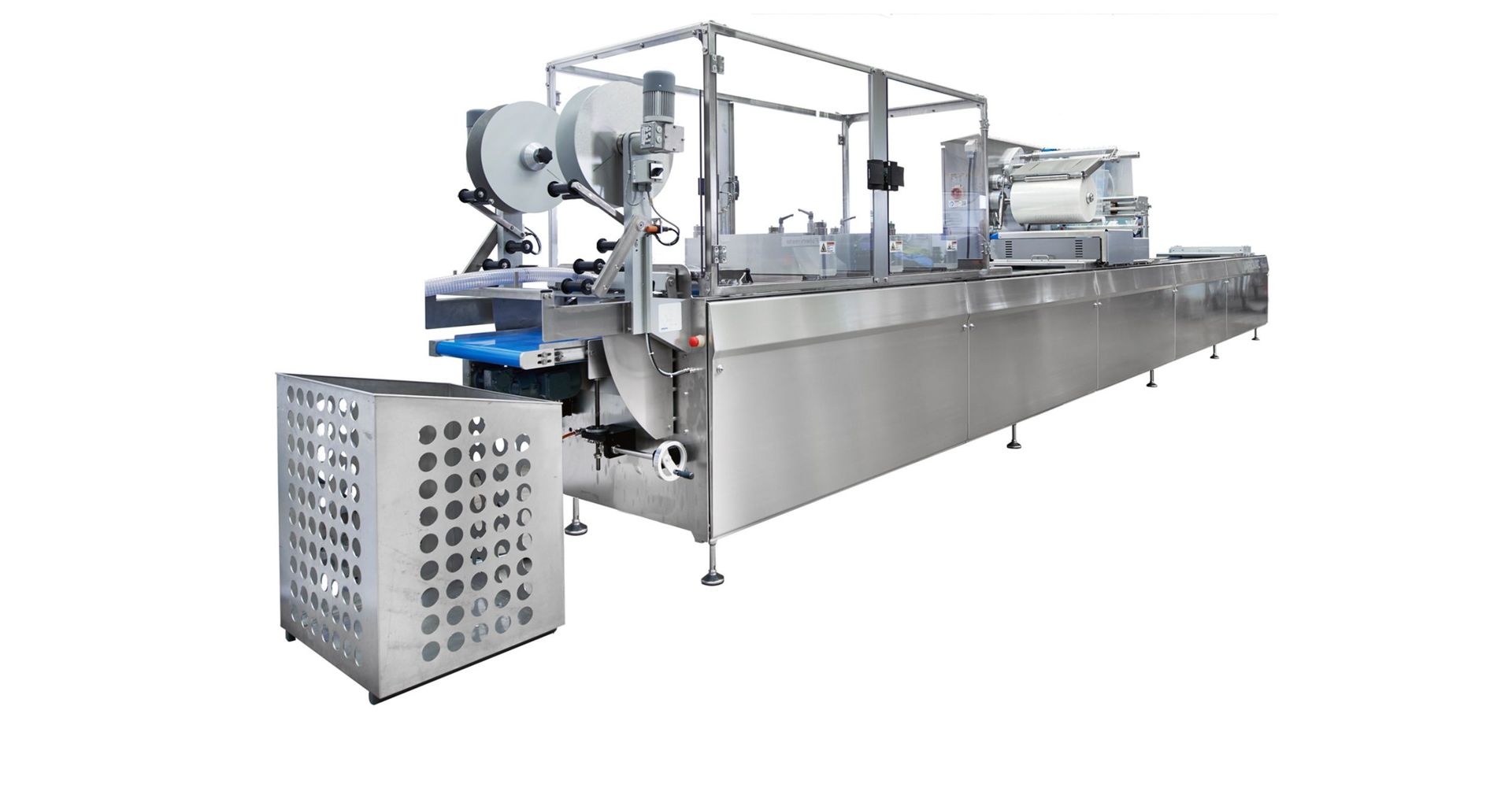

With the VARIOVAC Primus, we have the right concept for all areas and for every application and you have the right packaging. Thanks to our uncompromising, continuous further development of machine technology, it has established itself on the world market as one of the most reliable deep-drawing machines since its market introduction in 2013.

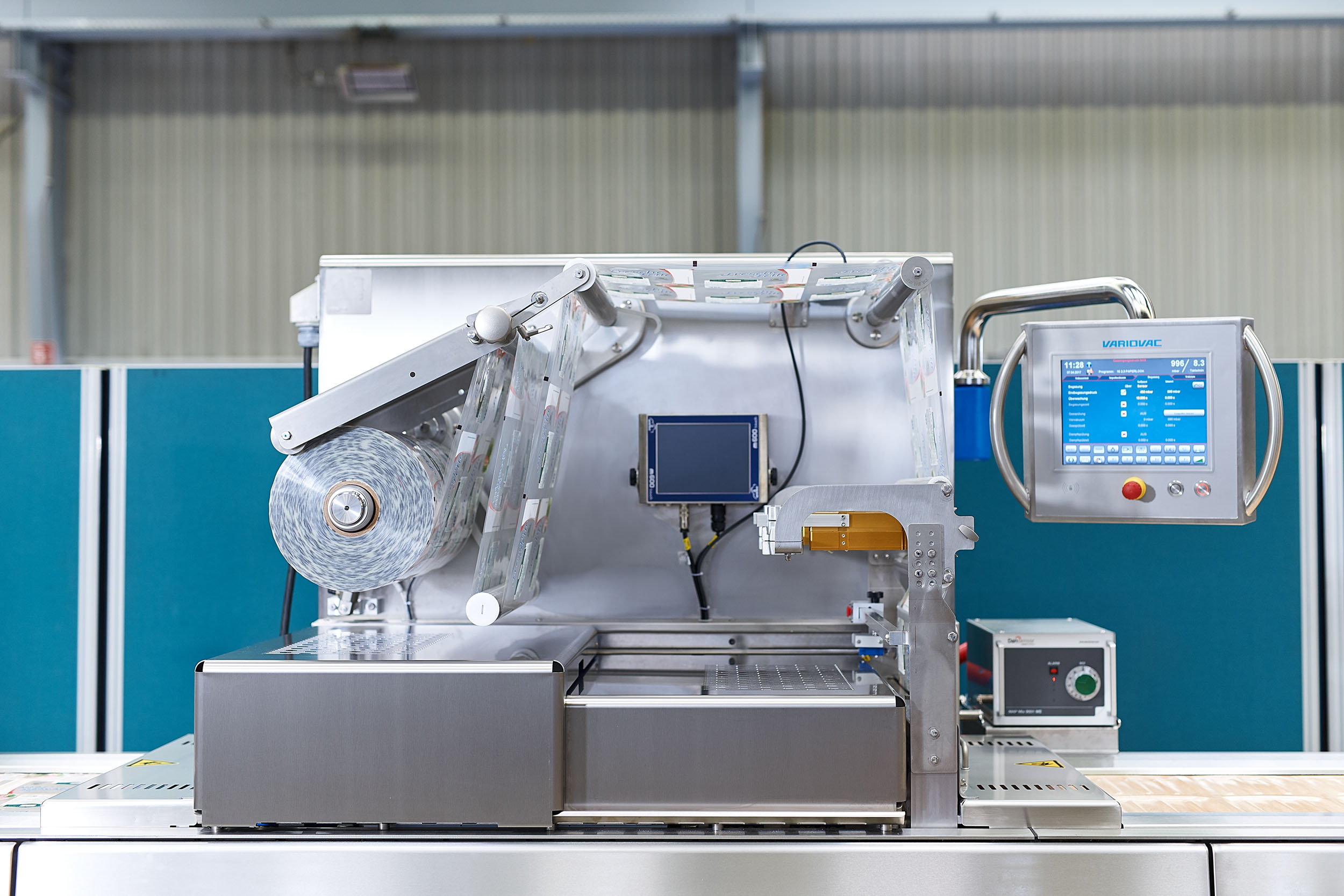

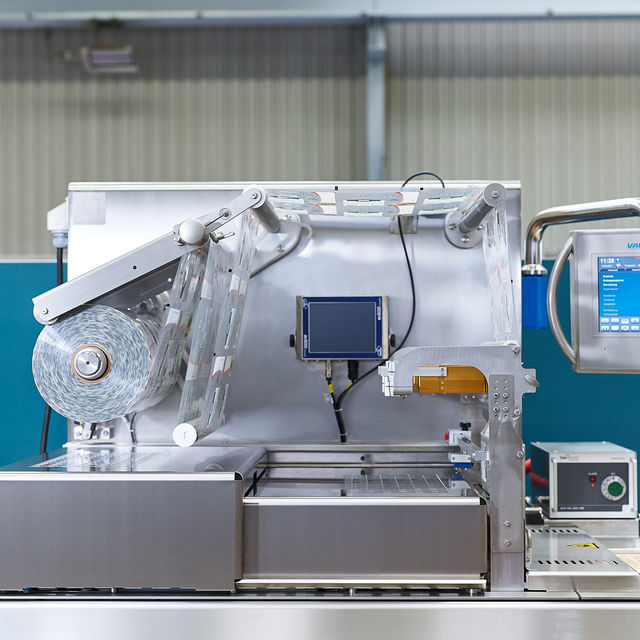

The highly developed VARIOVAC RapidAirSystem facilitates the perfect forming of the soft and hard foils and a reliable sealing of the packaging with up to 20 cycles per minute . Thanks to the VARIOVAC High Speed IPC, the process times can be depicted in real time. A special stainless steel frame construction guarantees maximum stability for the machine; the four-pillar lifting system generates maximum closing pressures.

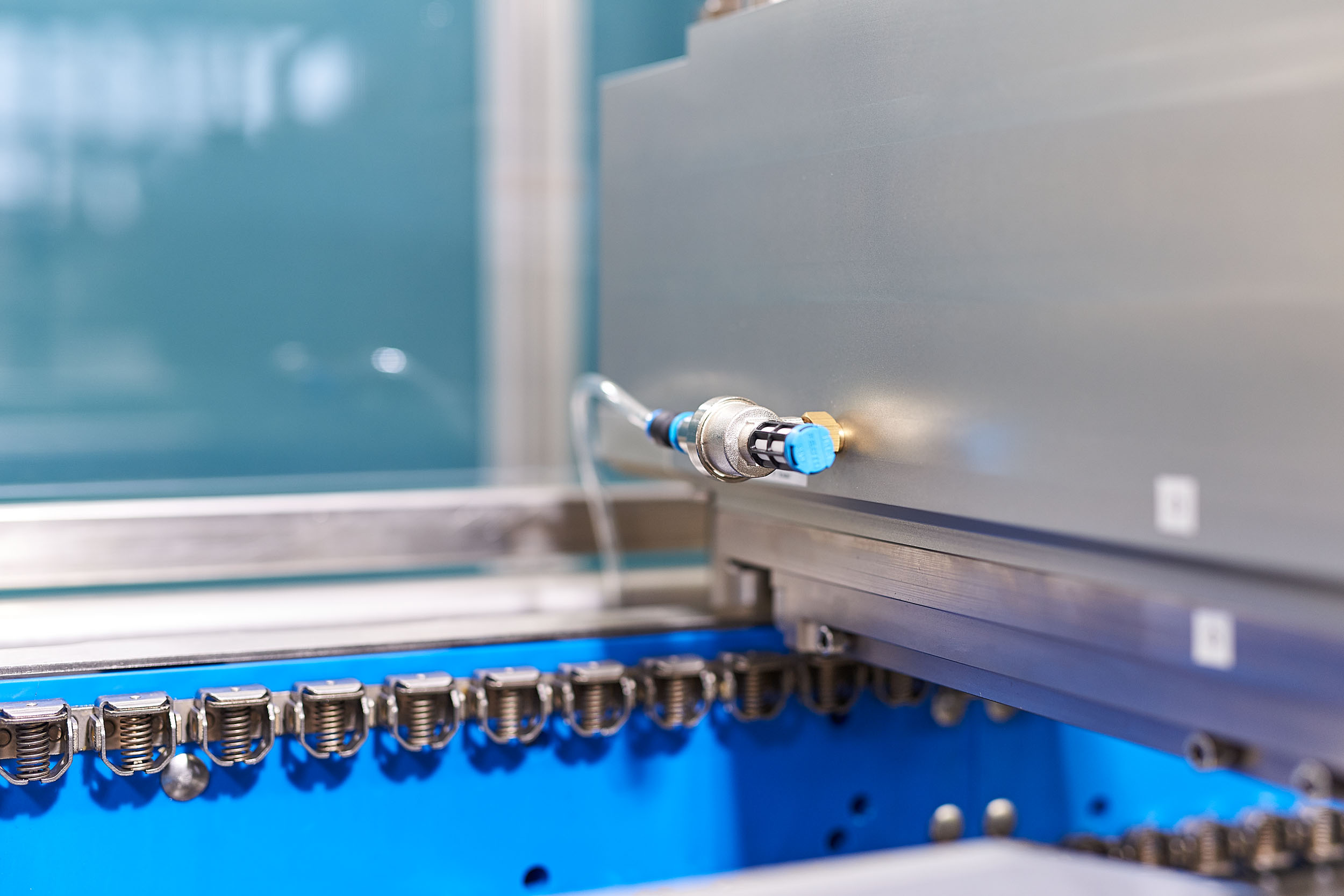

Parts of the consistent hygiene concept are open chain profiles and the avoidance of critical points and areas; the entire machine can thus be easily and reliably cleaned.

The VARIOVAC also meets all customer requirements with regard to user friendliness: The operation is intuitive, all information is depicted clearly with a text or symbol – ideal prerequisites for perfect communication between man and machine.

Diverse solutions and VARIOVAC components are available for the individual configuration of your packaging line; from feeding in the products and filling to marking and labelling, as well as seperating the packaging. Metal detectors and checkweighers complete your overall packaging line.

We look forward to configuring your packaging line with you.

Film widths: 230 – 560 mm
Draw-off lengths: 100 – 700 mm
Packaging depth: up to 135 mm
Film strength: Bottom foil up to 550 µ
Frame length: different module lengths of 5.0 to 12 m
High-performance control: IPC, swivel-mounted 12.1‘‘ touchscreen
Packaging output: up to 20 cycles / min
Packaging types: Sealing, Vacuum, MAP, Skin, Steam, Shrink
Cooling: integrated heat exchanger without consumption of water
Compressed air: min. 6 bar; the consumption is
dependent on the machine configuration
and equipment
Electrical voltage: 3 x 230 V N/PE
3 x 400 V N/PE
50/60 HZ
